Weighted dice#

weighted vs unweighted dice and their potential energy functions

Dice are used to determine outcomes in a number of games. We use dice because there should be an equal probability of any side showing on top. One way to trick your friends is to purchase a weighted dice. The weighted dice (if it is properly designed) is the same shape and the same mass as a normal, unweighted dice, but it has a higher probability of landing on a 6. How is that possible?

Hide code cell source
from IPython.display import YouTubeVideo
YouTubeVideo('EirwoZ0kIMU')

Dice characteristics#

The Dice weights and measurements you will consider are as follows

  • m = 10.4 g

  • L = 22 mm

  • \(V = 22^3~mm^3 = 10648~mm^3\)

First, consider the normal, unweighted dice where the center of mass is in the center of the dice.

unweighted dice rotating from 0 to 90 deg

The center of mass is located at point

\(\mathbf{r}_{com} = \frac{L}{2}\hat{i} + \frac{L}{2}\hat{j}\)

and when the dice rotates from \(\theta = 0...90^o\) the new center of mass location is

\(\mathbf{r}_{com}^{new} = \mathbf{A}\mathbf{r}_{com}\)

where

\(\mathbf{A} = \left[\begin{array} ~\cos\theta & -\sin\theta \\ \sin\theta & \cos\theta\end{array}\right]\)

so

\(\mathbf{r}_{com}^{new} = (\frac{L}{2}\cos\theta - \frac{L}{2}\sin\theta)\hat{i} + (\frac{L}{2}\sin\theta+ \frac{L}{2}\cos\theta)\hat{j}\)

Below, you calculate the potential energy of the dice for a given angle from \(\theta = 0...90^o\)

as

\(V = mgh = mg\mathbf{r}_{com}^{new}\cdot\hat{j}\)

L = 22e-3
m = 10.4e-3
g = 9.81 #m/s/s
theta = np.linspace(0, np.pi/2)
r = L/2*np.vstack([np.cos(theta)-np.sin(theta), np.sin(theta)+np.cos(theta)])
V = (r[1,:]-r[1,:].min())*m*g
# plt.plot(theta, r[0,:])
plt.plot(theta, V*1e3)
plt.xlabel(r'dice angle ($\theta$)')
plt.ylabel('potential energy (mJ)')

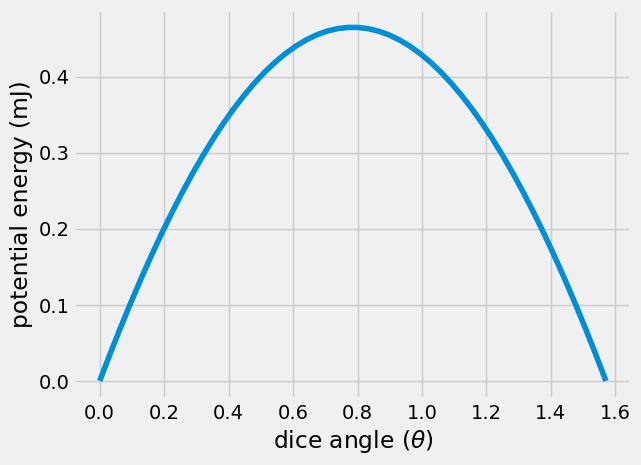

Text(0, 0.5, 'potential energy (mJ)')
../_images/e7efe0f817da6a4e3d26666a5de1f5951f5e7577533e01d4979c6735e4d99bb7.png

Weighted dice#

weighted dice rotating from 0 to 90 deg

The weighted dice has the same characteristics as the unweighted dice, but the center of mass is now shifted towards the bottom of the dice by 50%

  • m = 10.4 g

  • L = 22 mm

  • \(V = 22^3~mm^3 = 10648~mm^3\)

  • h = \(\frac{L}{4} = 5.5~mm\)

Here, you calculate the potential energy from \(\theta = 0...90^o\) for the weighted dice compared to the unweighted dice.

h = 0.25*L

theta = np.linspace(0, np.pi/2)
r_weighted = np.vstack([L/2*np.cos(theta)-h*np.sin(theta), L/2*np.sin(theta)+h*np.cos(theta)])
V_weighted = (r_weighted[1,:]-r_weighted[1,:].min())*m*g
# plt.plot(theta, r[0,:])
plt.plot(theta*180/np.pi, V_weighted*1e3, 'r-', label = 'weighted')
plt.plot(theta*180/np.pi, V*1e3, 'b-', label = 'unweighted')

plt.xlabel(r'dice angle ($\theta$)')
plt.ylabel('potential energy (mJ)')
plt.legend();

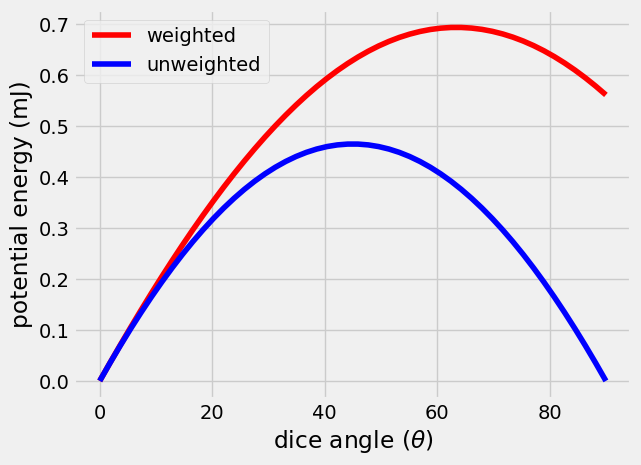

../_images/6350ce92bf22d42aeb7ab4c690831a68f7868184f8d34352a9b50ef9dbdc4b4f.png

To get from \(\theta=0^o~to\theta=90^o\), the total energy change is 0 for the unweighted dice. The weighted dice has an increase in energy of 0.55 mJ. In order to rotate the unweighted dice, the system needs a minum of 0.2 mJ. For the weighted dice, the system needs 0.7 mJ.

These are small energy values. Dropping the dice from 1 inch above a table gives 2 mJ of energy, more than enough to bounce the dice from one side to another. The

Reflection question: What is the minimum distance you need to drop an unweighted dice to have it change sides once?

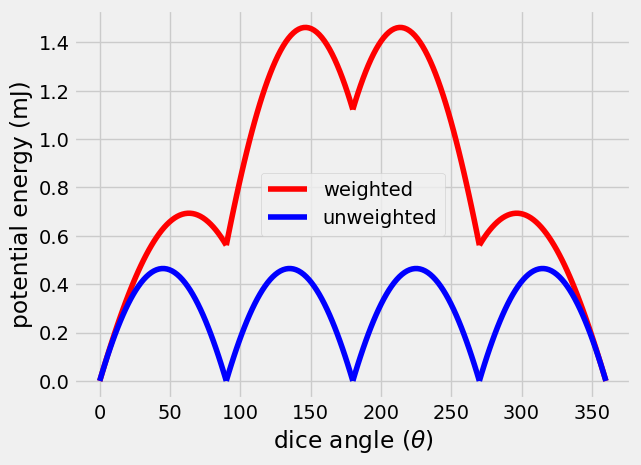

The real trick to the weighted dice is that the global energy miminum is designed to land on the chose side e.g. 6. If its given enough kinetic energy that it can dissipate through impacts, it will naturally land on 6. Below, the changes in potential energy are shown from \(\theta = 0...360^o\) (four full rotations) for the unweighted and weighted dice.

Hide code cell source
theta_2 = np.linspace(0, np.pi/2)
r_weighted_2 = np.vstack([(L-h)*np.cos(theta)-L/2*np.sin(theta),
                          (L-h)*np.sin(theta)+L/2*np.cos(theta)])
V_weighted_2 = (r_weighted_2[1, :] - r_weighted[1,:].min())*m*g

r_weighted_3 = np.vstack([L/2*np.cos(theta)-(L-h)*np.sin(theta),
                          L/2*np.sin(theta)+(L-h)*np.cos(theta)])
V_weighted_3 = (r_weighted_3[1, :] - r_weighted[1,:].min())*m*g

r_weighted_4 = np.vstack([h*np.cos(theta)-(L/2)*np.sin(theta),
                          h*np.sin(theta)+(L/2)*np.cos(theta)])
V_weighted_4 = (r_weighted_4[1, :] - r_weighted[1,:].min())*m*g

plt.plot(theta*180/np.pi, V_weighted*1e3, 'r-', label = 'weighted')
plt.plot(theta*180/np.pi + 90, V_weighted_2*1e3, 'r-')
plt.plot(theta*180/np.pi + 180, V_weighted_3*1e3, 'r-')
plt.plot(theta*180/np.pi + 270, V_weighted_4*1e3, 'r-')

plt.plot(theta*180/np.pi, V*1e3, 'b-', label = 'unweighted')
plt.plot(theta*180/np.pi + 90, V*1e3, 'b-')
plt.plot(theta*180/np.pi + 180, V*1e3, 'b-')
plt.plot(theta*180/np.pi + 270, V*1e3, 'b-')

plt.legend()
plt.xlabel(r'dice angle ($\theta$)')
plt.ylabel('potential energy (mJ)')

Text(0, 0.5, 'potential energy (mJ)')
../_images/edad57a7b60fb0c531eac92fe124f068d7eaddec5ad0f3f9885ecc5cbf1763f4.png

Wrapping up#

In this notebook, you calculated the potential energy of a dice sitting on a table and the minimum amount of energy needed to rotate the dice to another side. Then, you considered a weighted dice that has the same mass, but shifted away from the 6-side.

You found that shifting the center of mass lower by 5.5 mm led to higher potential energy on every other side and larger energies needed to rotate to another side.
