Module 05 - project build an example#

This is your chance to build something important to you and/or your career. If you’re interested in cars you can create a drivetrain model. If you want to get into biomechanics you can model an orthopedic joint or build a 2D model of someone walking. If you love toys (I know Prof. Cooper does!) you can model a yoyo spinning on a cord or a spinning top or measure the coefficient of restitution of a bouncy ball on concrete.

Some tips:

  • start simple its often easier to add complexity rather than remove complexity if you’re considering a 6-DOF system, try a 1-DOF part, then add components incrementally

  • use what you have you have working models for four-bar linkages, pendulums, and a yoyo despinning mechanism can you take your system and model a piece of it as a pendulum? is angular momentum conserved?

  • communicate let us know what you’re working on simple sketches are great! don’t get hung up on a final result until you have some sketches and conversations

  • always draw a FBD this step is so often skipped, but its really where the bulk of your engineering work is decided. The FBD is your main contribution to any engineering project, everything else is a combination of puzzle-solving and applied mathematics

l1 = 0.25 #m length of my forearm
l2 = 0.3 #m length of my bicep and shoulder
l3 = 0.55 #m length of both my forearm and bicep and shoulder
a1 = np.pi/2
dy = 0
dx = 0.41 #the measured distance between my two shoulders, meaning l1 and l3
Fbar = lambda a1,x: np.array([l1*np.sin(a1)+l2*np.sin(x[0])-l3*np.sin(x[1])-dy,
                           l1*np.cos(a1)+l2*np.cos(x[0])-l3*np.cos(x[1])-dx])
a1 = np.linspace(0, 2*np.pi)
a2 = np.zeros(len(a1))
a3 = np.zeros(len(a1))
xsol = np.array([0, np.pi/4])
for i in range(len(a1)):
    xsol = fsolve(lambda x: Fbar(a1[i], x), xsol)
    a2[i] = xsol[0]
    a3[i] = xsol[1]

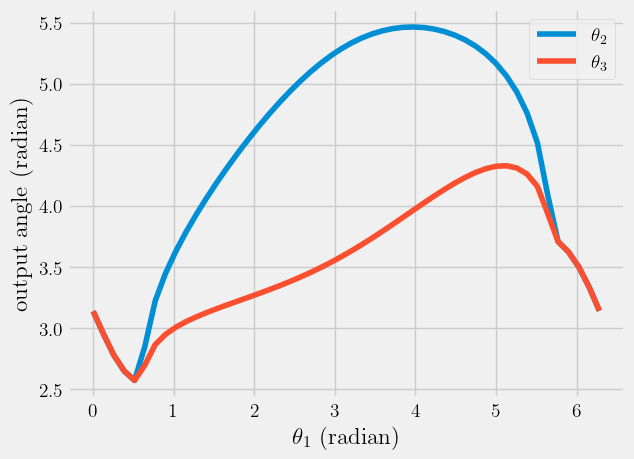

plt.plot(a1, a2, label = r'$\theta_2$')
plt.plot(a1, a3, label = r'$\theta_3$')
plt.xlabel(r'$\theta_1$ (radian)')
plt.ylabel('output angle (radian)')
plt.legend();
#this looks like the swing I am trying to achieve since the links are limited in their range
/tmp/ipykernel_133229/2052099194.py:14: RuntimeWarning: The iteration is not making good progress, as measured by the
  improvement from the last ten iterations.
  xsol = fsolve(lambda x: Fbar(a1[i], x), xsol)
/tmp/ipykernel_133229/2052099194.py:14: RuntimeWarning: The iteration is not making good progress, as measured by the
  improvement from the last five Jacobian evaluations.
  xsol = fsolve(lambda x: Fbar(a1[i], x), xsol)
../_images/ae36713bdaea9b05e2806d232d6b61e245916188863d1683a12ec97695b69d41.png
rA = l1*np.vstack([np.cos(a1), np.sin(a1)])
rB = rA + l2*np.vstack([np.cos(a2), np.sin(a2)])
rC = rB - l3*np.vstack([np.cos(a3), np.sin(a3)])
rP = rA + l2/2*np.vstack([np.cos(a2), np.sin(a2)])
links_x_locations = np.vstack([np.zeros(len(a1)),
                              rA[0, :],
                              rB[0, :],
                              rC[0, :]])
links_y_locations = np.vstack([np.zeros(len(a1)),
                              rA[1, :],
                              rB[1, :],
                              rC[1, :]])
i = 10
plt.plot(links_x_locations[:, i],
        links_y_locations[:, i], 'k-o')
plt.plot(rA[0,:], rA[1,:], label = 'hinge A')
plt.plot(rB[0,:], rB[1,:], label = 'hinge B')
plt.plot(rC[0,:], rC[1,:], label = 'hinge C')
plt.plot(rP[0,:], rP[1,:], label = 'midpoint AB')
plt.legend()
plt.title('Paths and orientation for\n'+
          r'$\theta_1$ = {:.1f}, $\theta_2$ = {:.1f}, $\theta_3$ = {:.1f}'.format(a1[i], a2[i], a3[i]))
plt.axis('equal');
../_images/5833ae328a309f61df6e89b38500625baad63e573c4332f44e31e09a73994cf1.png
drive_rate = 10 #rad/s
dFbar = lambda a1, a2, a3, dx: np.array([l1*drive_rate*np.sin(a1)+\
                                         l2*dx[0]*np.sin(a2)-\
                                         l3*dx[1]*np.sin(a3),\
                                         l1*drive_rate*np.cos(a1)+\
                                         l2*dx[0]*np.cos(a2)-\
                                         l3*dx[1]*np.cos(a3)])
da1 = np.ones(len(a1))*10
da2 = np.zeros(len(a1))
da3 = np.zeros(len(a1))
xsol = np.array([0, 0])


for i in range(len(a1)):
    xsol = fsolve(lambda dx: dFbar(a1[i], a2[i], a3[i], dx), xsol)
    da2[i] = xsol[0]
    da3[i] = xsol[1]
plt.plot(a1, da1, label = r'$\dot{\theta}_1$')
plt.plot(a1, da2, label = r'$\dot{\theta}_2$')
plt.plot(a1, da3, label = r'$\dot{\theta}_3$')
plt.legend()
plt.xlabel(r'$\theta_1$ (radian)')
plt.ylabel('output angular speed (radian/s)')
Text(0, 0.5, 'output angular speed (radian/s)')
../_images/422a054b228f44e72bb26204ab745fd6f7206f09ff8ce3681b9944ed0aced0d7.png

Proposed Outline:#

Background#

  • What are you trying to model? I am trying to simulate a good golf swing with the circular shape of the shoulders. The model is simplified because it acts in a four-bar linkage design. The bicep and forearm of one arm (made into two links, l1 and l2) and the other entire arm (l3). Free body diagram and motion of golf swing is shown in the jpeg (l1 and l2 should be switched). IMG_5C3DE768BA33-1.jpeg

    I used my model from the Module 2, the four bar linkage design. It still could use work, but the general idea is there. Firstly, I defined my variable values l1 is the length of my forearm, l2 is the length of bicep, l3 is the length of the other arm, and dx is the length between my two shoulders (the model of the graph called ‘Path and Orientation For…’ shows this in birds-eye-view of my model). I then defined the motion of the hinges and their angles, plotted in the first graph ‘output angle vs. theta 1’ and second graph ‘Paths and Orientation for.’ I then found the angular velocity plotted in third graph, ‘output angular speed vs theta.’ My assumptions are that the model returns back to the same place as the start of the swing right before hitting the ball otherwise it cannot hit the ball. My constraints are that one arm has no hinge while the other does; this allows for a good and extended backswing but limits the front swing because it cannot move passed the full extension of the arm containing l1 and l2. This is due to the fact that l3 cannot bend to allow for the extension of the back arm (l1 and l2). The equations are used are in my code above. I used my Newton-Euler equations and constraint vectors to define postions of linkages. My analysis is shown above and graphs of my work are displayed above to demonstrate the angles, angular speed, and hinge movement.
